Two Store Building 4 Room Full Design with Structural Design also Estimate.

two store building for 4 room.

Two Store Building 4 Room Full Design with Structural Design also Estimate.

বাংলাতে দেখতে এখানে ক্লিক করুন

You can see in this post.

1. Project Name and Location

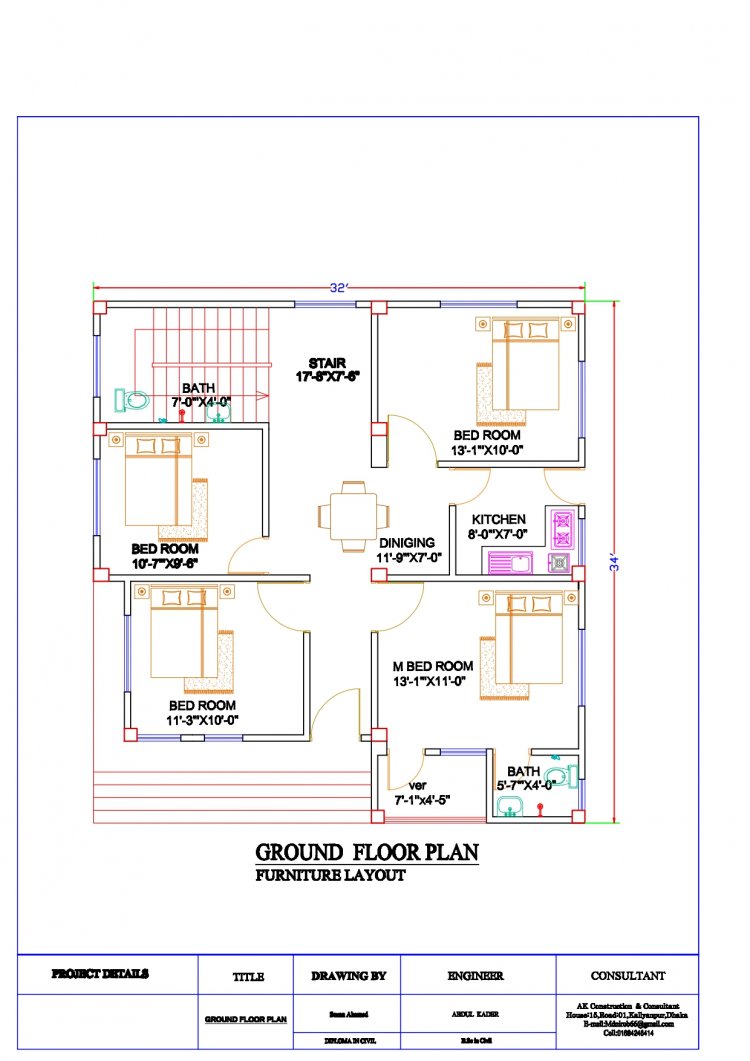

2. Floor Plan with Architectural Design.

3. Structural Design.

4. Electric Design.

5. Estimate.

6. 3d Design ( out view)

Name : Md Rasel Rayhan

Location: Fani

Foundation : 2 Store Building.

32x 34 4BHK Modern House Plan || Plan No :- 132

32x 34 4BHK

32X 34 House Plan Key Features: -

This house is a 4Bhk private arrangement included with a measured kitchen, 4 Room, 2 toilet with Residing space.

32X34 4BHK PLAN DESCRIPTION:-

32X34 4BHK Plot Area – 1088 square feet

 Total Built Area – 1088 square feet.

 Width – 32 feet / Length – 34 feet/



Cost – Low

Bedrooms – 4 (with Cupboards, Study and Dressing)

Bathrooms – 2 (1 Attach &1 common)

Kitchen – Modular kitchen

Stairs – U-shaped staircase (Inside)

In this article below given the details of 38 x 60 4BHK house plan.

Bedrooms:- -

  The bedroom is the most important space in the house. For Salvatore, the bedroom is space which calls for sensitive manipulation of light and tone.



Bedroom 1: -
·       13'-1" x 11'-0"
·       Queen sized Bed
·       Almira (Storage for clothes)
·       Dressing
·       TV (if needed)

Attached Bath room

5’-7” x 4’-0”

Attached Bharandha

7’-1” x 4’-5”


Bedroom 2: -
·       11'-3" x 10'
·       Queen sized Bed
·       Almira (Storage for clothes)
·       Dressing
·       TV (if needed)


Bedroom 3: -
·       13'-1” x 10'-0”
·       Queen sized Bed
·       Almira (Storage for clothes)
·       Dressing



Bedroom 4: -
·       10'-7” x 9'-6”
·       Queen sized Bed
·       Almira (Storage for clothes)


Bathrooms: -
      Common toilet is also very important in any house. It is mainly made for commuters and guests. If there is no common toilet, then commuters also have to use the toilet of bedroom.

Common Bathroom: -
·       7'-0" x 4'
·       Washbasin
·       Toilet
·       Shower
·       Ventilatio·
·       ·


Kitchen: -
When design a new home, it is very important to first determine the location of the kitchen, on the basis of Vaastu, south-east is the first option for the kitchen and north-west is the second option.

  • 8’-0" x 7'
    ·       Big window
    ·       Lower cabinet
    ·       Upper cabinet
    ·       Big Fridge
    ·       4 burner stove with chimney
    ·       Sink
    Stair: -
    For planning of a stair, one things to be noted while planning the stair is that  the stair should always rotate in the clockwise direction of the clock, the reverse of this is considered wrong according to Vaastu.

U-shaped Stair (Inside)
       17'-6" x 7'-6”
       Now we will see approximate details estimate of 32 by 34 house plan.

Now we will explain structural design this this design

Footing Layout

Three type of footing is this house

Footing Section

1.Footing Zise 5'-6" x 5'-6"

2.Footing Zise 5'-0" x 5'-0"

3. Footing Zise 4'-0" x 4'-0"

Column Layout

Column schedule

Grate Beam Layout

Grade Beam 1 Details

Grade Beam 2 Details

Floor Beam Layout

Floor Beam Deatils 1

Floor Beam Details 2

Stair Detail

Roof Slab Details

Electric Floor Plan Layout

First Floor Electric Design Plan

Electric General Note

Estimate

The GROSS MATRIAL cost which is 65% of total expenditure about BD.2235000/-

Let’s look into the subparts of above material cost.

CEMENT cost is about BD.2,09,000/-(approx.)

SAND cost is about BD.76,000/- (approx.)

AGGRAGATE cost is about BD.195,000/- (approx.)

STEEL cost is about BD.3,85,000/- (approx.)

BRICKS cost is about BD.1,33,000/- (approx.)

TILES cost is about BD.176,000/- (approx.)

PLUMBING cost is about BD.57,000/- (approx.)

ELECTRICAL cost is about BD.107,000/- (approx.)

SANITARY cost is about BF.97,500/- (approx.)

DOOR & WINDOWS cost is about BD.57,000/- (approx.)

PAINTING cost is about BD.85,500/- (approx.)

EXTRA WORK FOR SEFTY cost is about BD.157,000/- (approx.)

The LABOUR CHARGE which is 25% of total expenditure, about BD.575000/-

The ENGINEER CHARGE which is 65% of total expenditure, about BD.190000/-

Approx. Estimate: - 25 lakhs

This value is approximate because your estimate depend upon LOCATION and QUALITY of building material.
